Picchiotti Cantieri

Sold

SPECIFICATION

LOA (Metres/Feet):	13.72m / 45\'00
Draft (Metres/Feet):	01.04m / 03\'05
Beam (Metres/Feet):	03.86m / 12\'08

Berths:	6
Type:	Motor Cruiser
Fuel:	Diesel

Reference: NYB1170

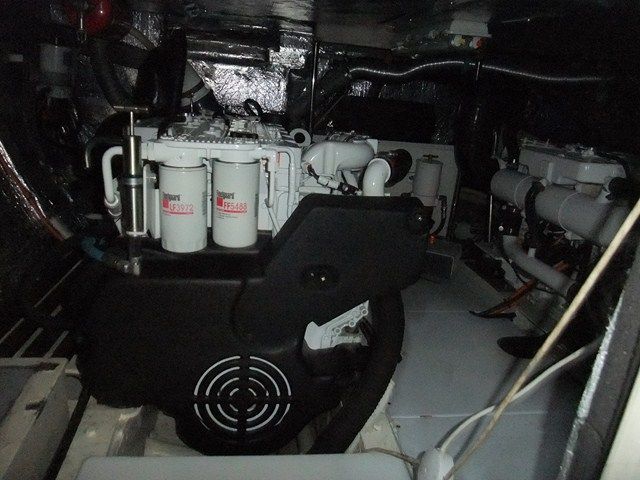

Picchiotti Cantieri – Built 1982, the boat has undergone an extremely comprehensive mechanical refit over the recent years. The original Sabres have been replaced with two Cummins 480hp diesels with new electronic throttles, shafts and props. A fantastic opportunity to obtain a true classic that has had the benfit of a massive makeover! Pex possible

LYING CONTACT NYA BRUNDALL - NYB1170 - P/EX POSSIBLE

Picchiotti Cantieri for sale

Boat Reference Number:	NYB1170
Year Built:	1982
LOA (Metres):	13.72m
Draft (Metres):	01.04m
Beam (Metres):	03.86m

Vessel Location:	CONTACT NYA BRUNDALL
Cabins:	3
LOA (Feet):	45\'00
Draft (Feet):	03\'05
Beam (Feet):	12\'08

Berths:	6

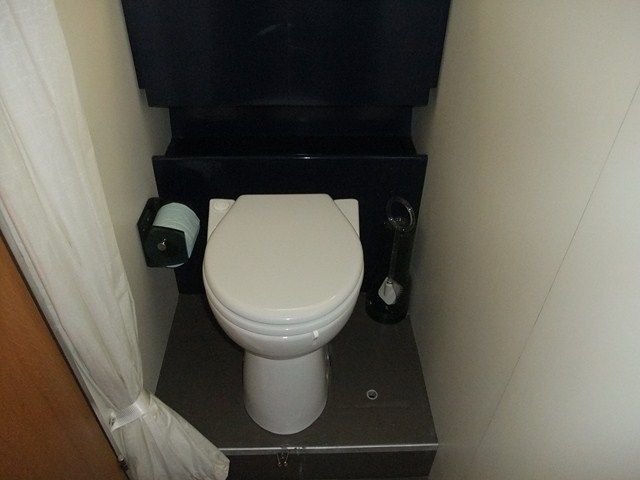

Toilets:	2
Hull Construction:	GRP
Fuel:	Diesel

Showers:	2
Hull Type:	Semi-Displacement
Engine Manufacturer:	Cummins
Engine Power:	480

Number of Engines:

Engine Hours:

Engine 1: Approx. 160
Engine 2: Approx. 160

Fuel Capacity	430 Gallons
Drive Type:	N/A
Type:	Motor Cruiser

Max Speed:	0
Make:	Picchiotti Cantieri
Yacht Type:	Brokerage

Galley

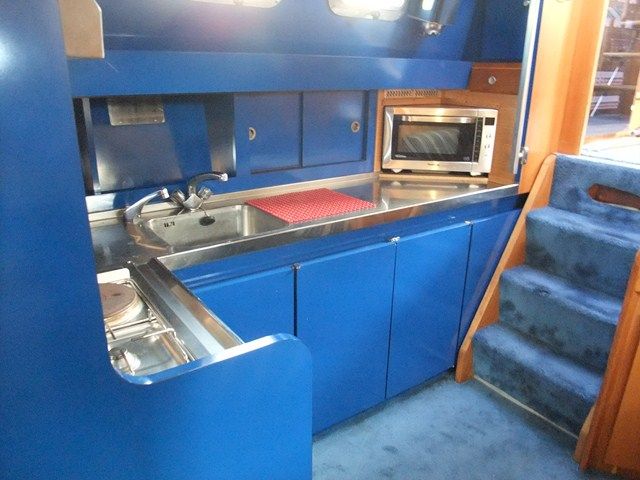

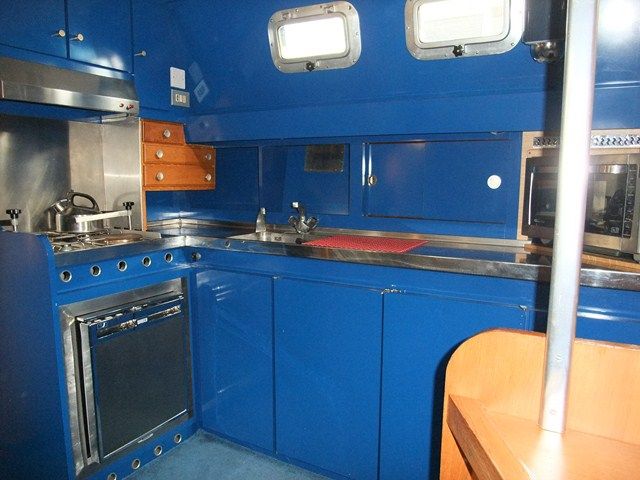

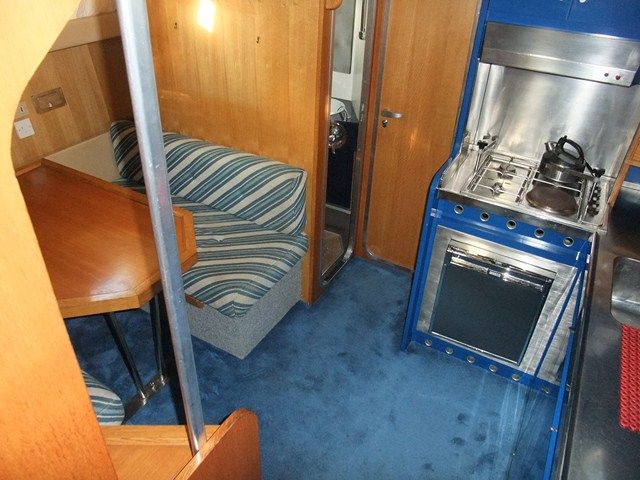

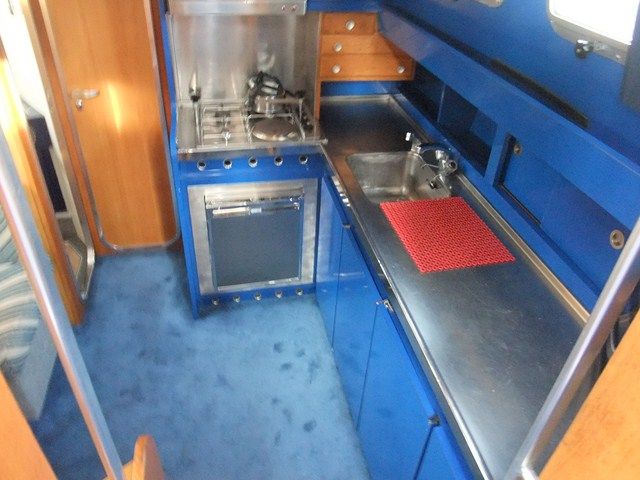

The galley is located to starboard and is in an L Shaped arrangement that incorporates the following: Stainless steel worktop with integral sink Waeco Fridge (New 2011) Panasonic Combi/Microwave (New 2011) Headlinings ceiling lighting (New 2011) Plentiful stowage for crokery and cutlery.

Deck Equipment

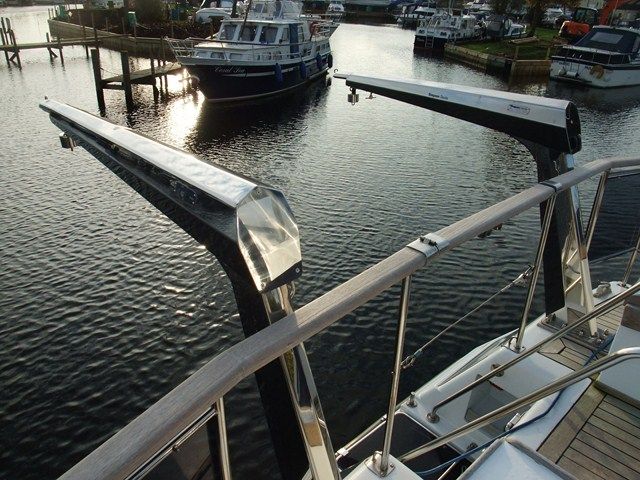

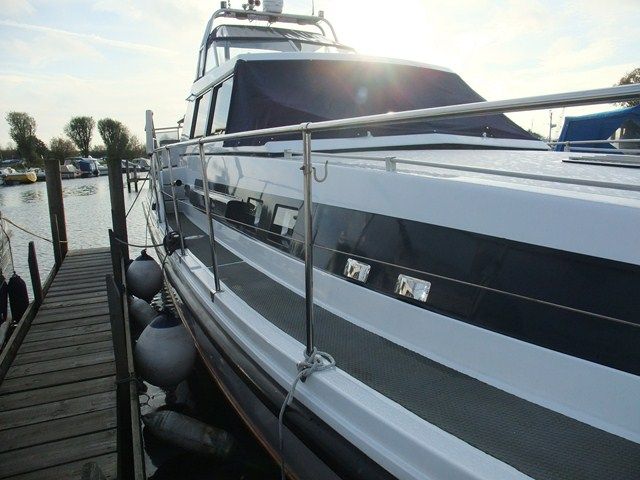

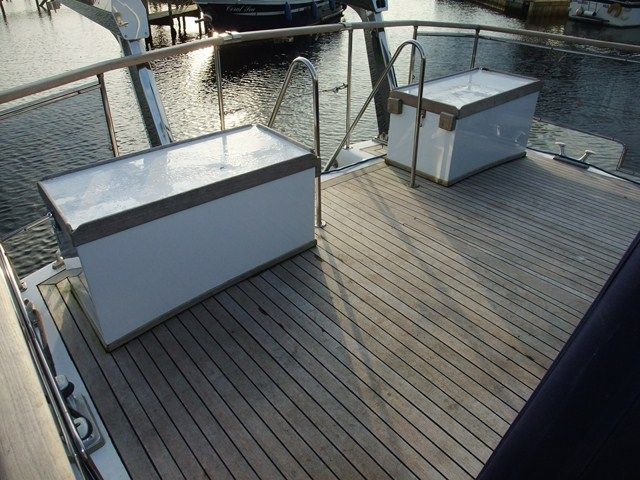

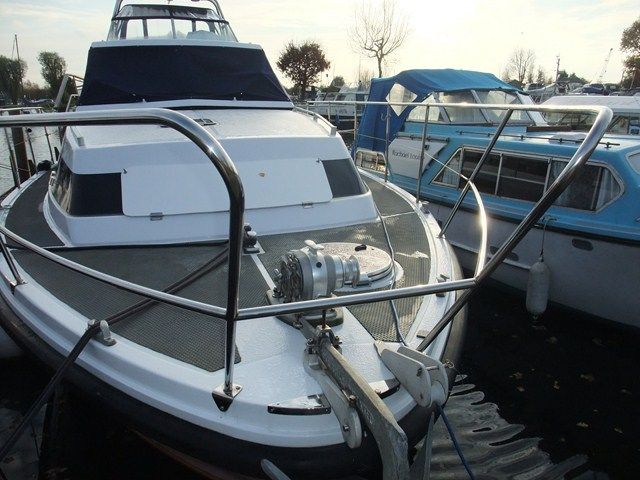

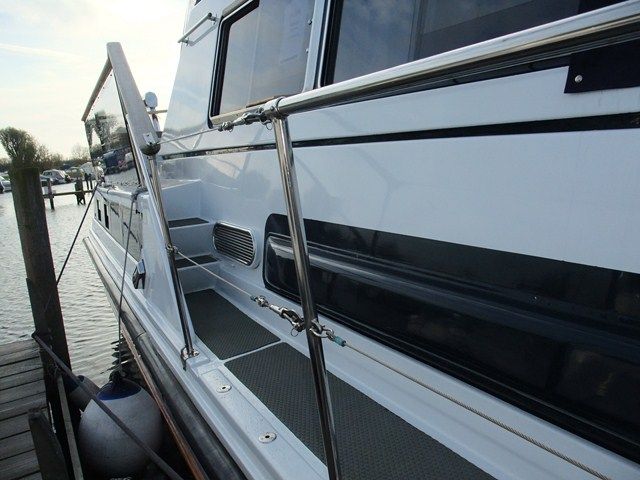

Stainless steel boarding ladder Gates at the break of deck and also at the centreline aft Handrails secure to the forward coachroof top and also in the vicinity of the outer helm/companionway Aft deck incorporated laid teak with Polysolvite seams(Refurbished 2011) 2 x aluminium bow roller fittings 3 x aluminium bollards per side with adjacent fairleads 300kg Simpson S/S Electric Davits -(New 2011) Stainless steel goalpost mast fitted at the after end of the superstructure which carried navigational equipment, lights etc. Vetus electric anchor windlass with Bruce 30kg galvanised bower anchor with 10mm o/d galvanised anchor cable. The anchor connects via an anchor shackle. Stainless steel pulpit (New 2011) Upper stainless steel rail supported upon stanchions Lower stainless steel guard wire

Mechanical / Electrical

Cummins Marine digital Smartcraft display unit, Shore power with 240v main and 3 pin plugs, 6 x 12V 105 A/H batteries, 2 x 12V 50 A/H Engine batteries (New 2010), Victron Phoenix battery charger. Engine Alternators, -Electric bilge pumps in the forward cabin, engine compartment, aft cabin and lazarette. Calorifier supplying hot water, Webasto warm air heating system Rev counters

Navigation Equipment

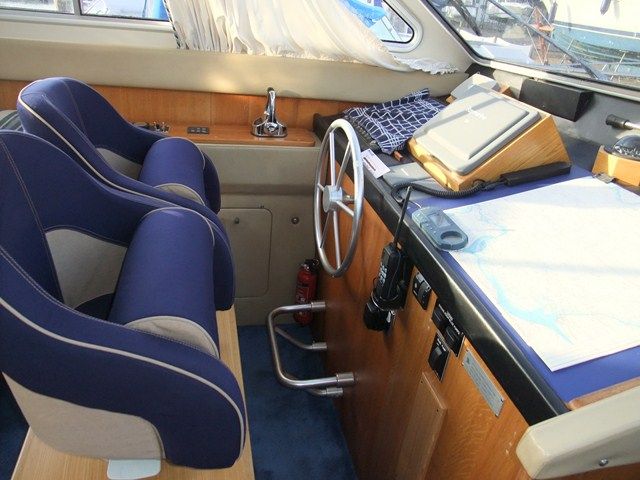

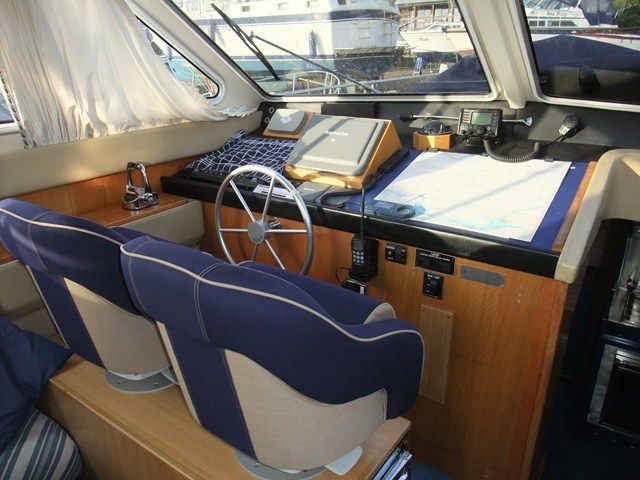

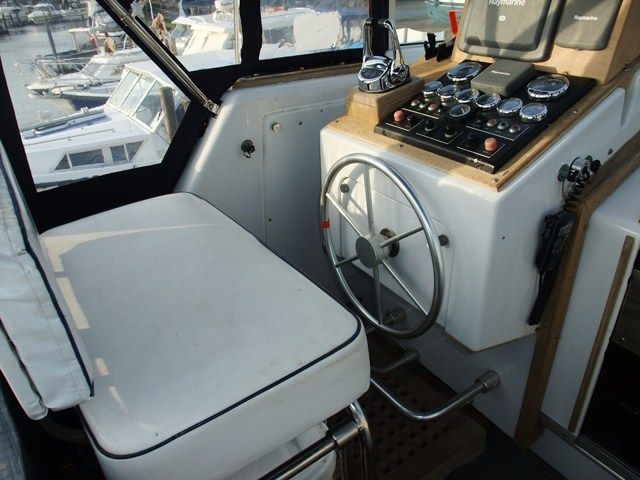

Danforth Constellation magnetic compass Raymarine camera McMurdo ICS Nav 6 Navtex Icom IC-M505 DSG VHF Icom HM162E VHF Raymarine E120 radar/plotter (Software updated 2011) Raymarine E80 external helm display (Software updated 2011) Raymarine Tri Data Raymarine Autopilot Yeoman chart plotter

Safety Equipment

6 person life raft 2 x boat hooks Flare pack, expiry date 12/2011 EPIRB Set of navigation lights Emergency tiller Fire extinguishers

Service History

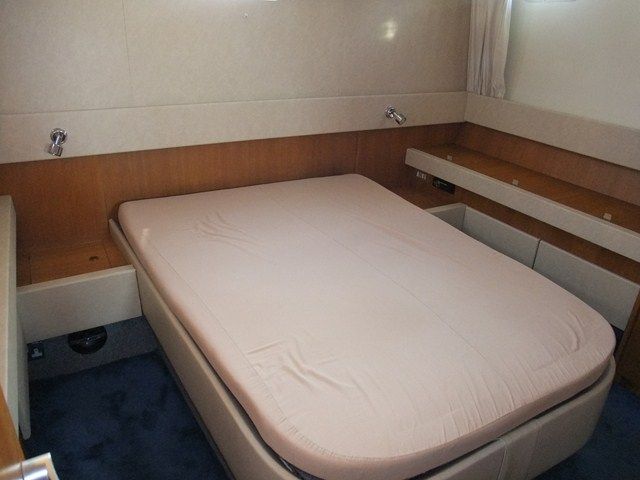

New engines 2009 2 x new batteries 2010 New davits 2011 New pulpit 2011 New headlinings and lighting throughout 2011 2 x New Waeco Fridges 2011 2 x New memory foam mattress 2 x new mirrors in cabins New Sony radio/stereo/USB and speakers New Cabin access door 2011 Windows constructed from toughened glass (New 2011), set within anodised aluminium frames (Refurbished 2011) Toughened glass screens to upper helm (New 2011)

Other Equipment

Stern Gear 2 x 60mm o/d stainless steel propeller shafts (NEW 2009) Outboard support is provided by non-ferrous P brackets Stern tubes equipped with Deep Sea Seals Propulsion provided for by a pair of fixed four blade counter rotating propellers (New 2009) Spur rope cutters are fitted ahead of the propellers Cathodic Protection 300mm zinc alloy anodes internally bonded to each engine and the stern gear via shaft brushes Zinc alloy shaft anodes Two button anodes for each rudder

Disclaimer

The company normally acts as broker for the vendor who unless otherwise stated is not selling in the course of a business. Whilst every care has been taken in the preparation of these particulars the correctness is not guaranteed and they are intended as a guide only and do not constitute a part of any contract. A prospective buyer is strongly advised to check these particulars and where appropriate and at his own expense to employ a qualified marine surveyor to carry out a survey and/or to have an engine trial conducted which if conducted by us shall not imply any liability on our part.
