SPECIFICATION

LOA (Metres):

9.75m

Draft (Metres):

0.91m

Beam (Metres):

3.51m

Air Draft (Metres):

2.49m

LOA (Feet):

31' 11"

Draft (Feet):

2' 11"

Beam (Feet):

11' 6"

Air Draft (Feet):

8' 2"

Berths:

4 - 6

Cabins:

Style:

Offshore

Fuel:

Diesel

DOWNLOAD BROCHURE (PDF) DOWNLOAD REPORTS

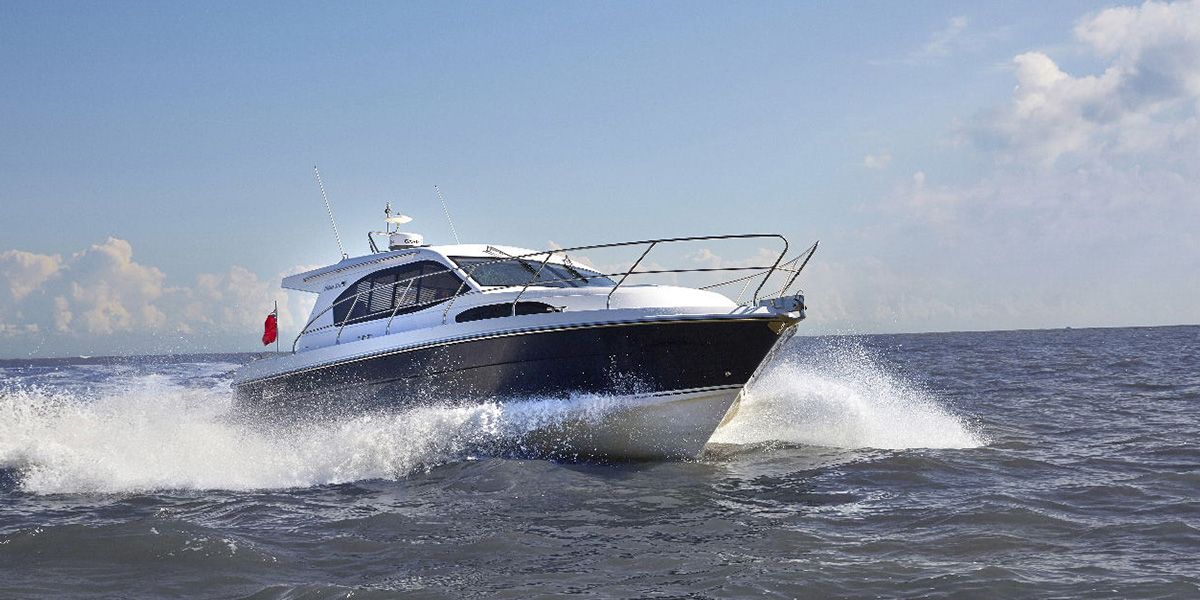

SAFE AND COMFORTABLE OFFSHORE CRUISING

With a full offshore planing hull designed by renowned designer Andrew Wolstenholme, delivers a comfortable performance at low to intermediate planing speeds. Offered with a range of single or twin engine options and Haines unquestionable build quality. Light and airy throughout, with full opening ‘slide and stack’ patio doors connecting the saloon to the aft deck area. The large island double en-suite cabin forward and generous galley provides excellent accommodation for those longer stays onboard.

Features

Category B offshore motor cruiser
Andrew Wolstenholme designed planing hull
Larger single or twin engine options
2 x 50 gallon stainless steel fuel tanks
55 gallon stainless steel water tank
Folding stainless steel light / navigation equipment mast
4 or 6 berth layout options
Volvo D4 260 (260hp) 17 knots

Single Nanni T4.200 (200hp) 16 knots
Single Nanni T4.270 (270hp) 18 knots
Yanmar 8LV320 (320hp) 20 knots
Yanmar 8LV350 (350hp) 22 knots
Yanmar 8LV370 (370hp) 23 knots
Twin Volvo D3 150 (2 x 150hp) 2 knots
Twin Volvo D3 170 (2 x 170hp) 23 knots

Accommodation

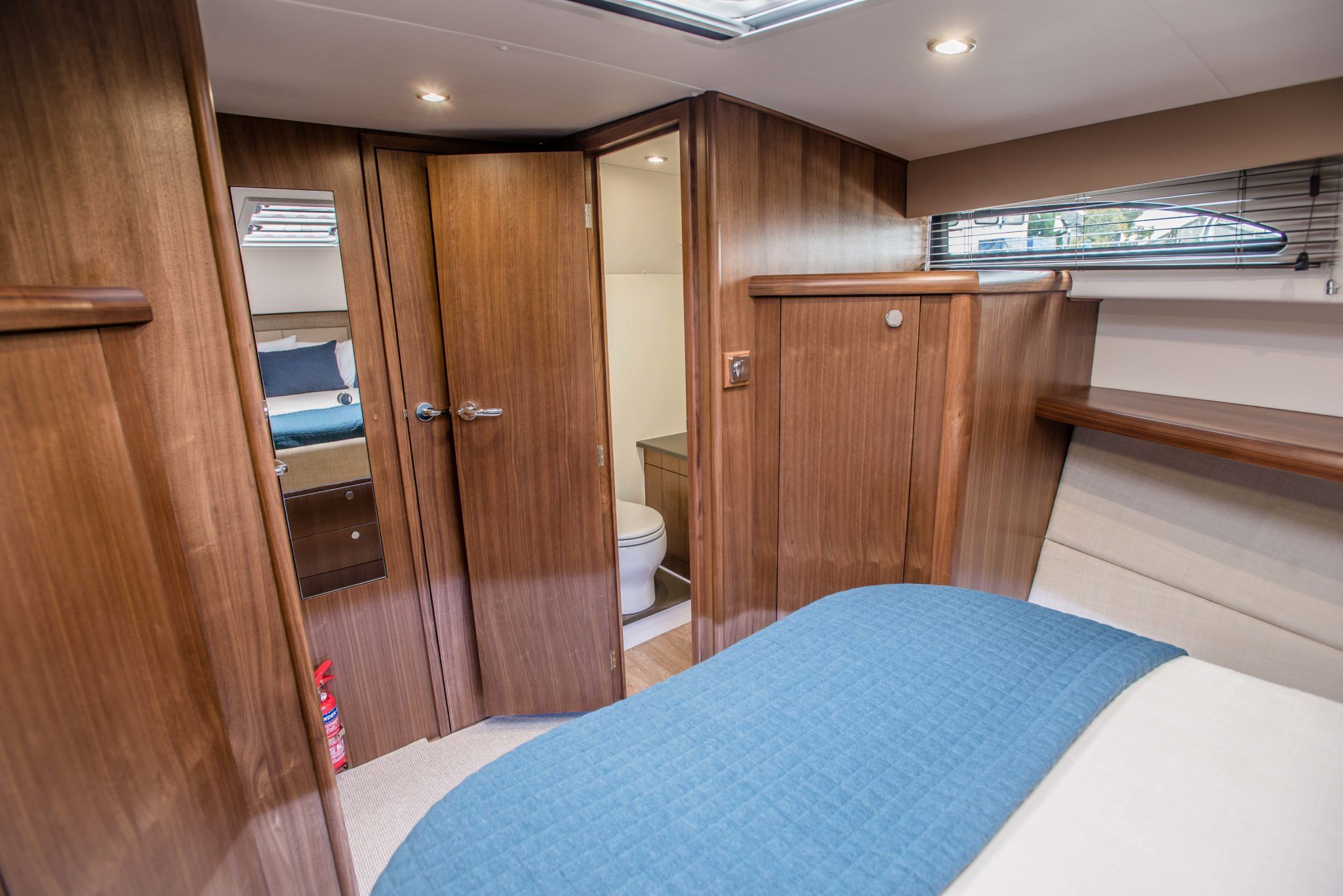

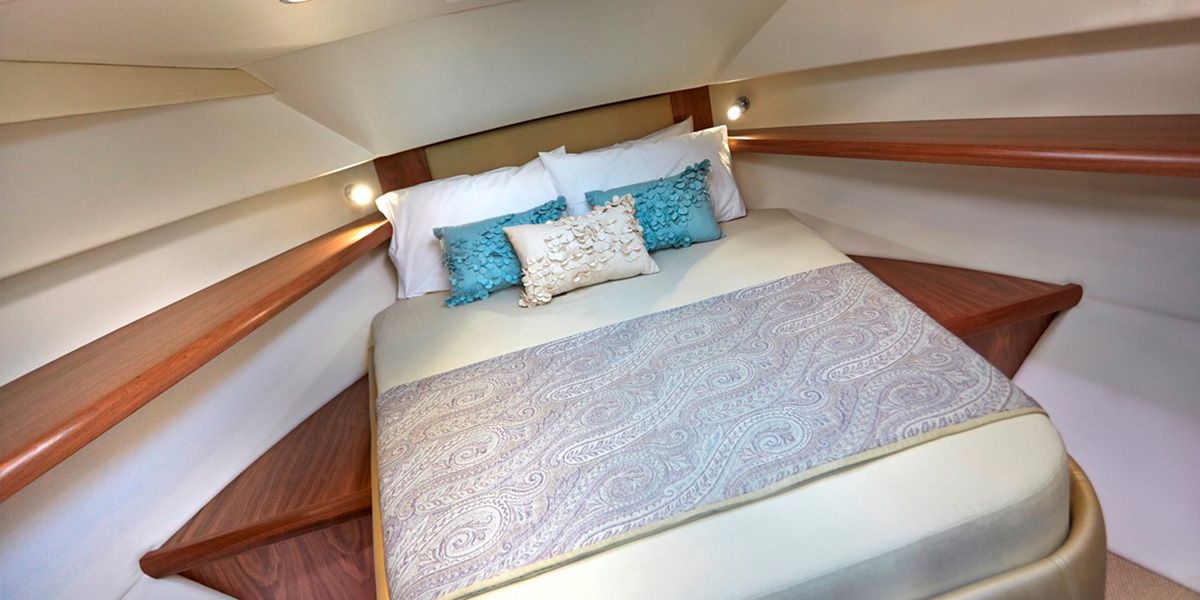

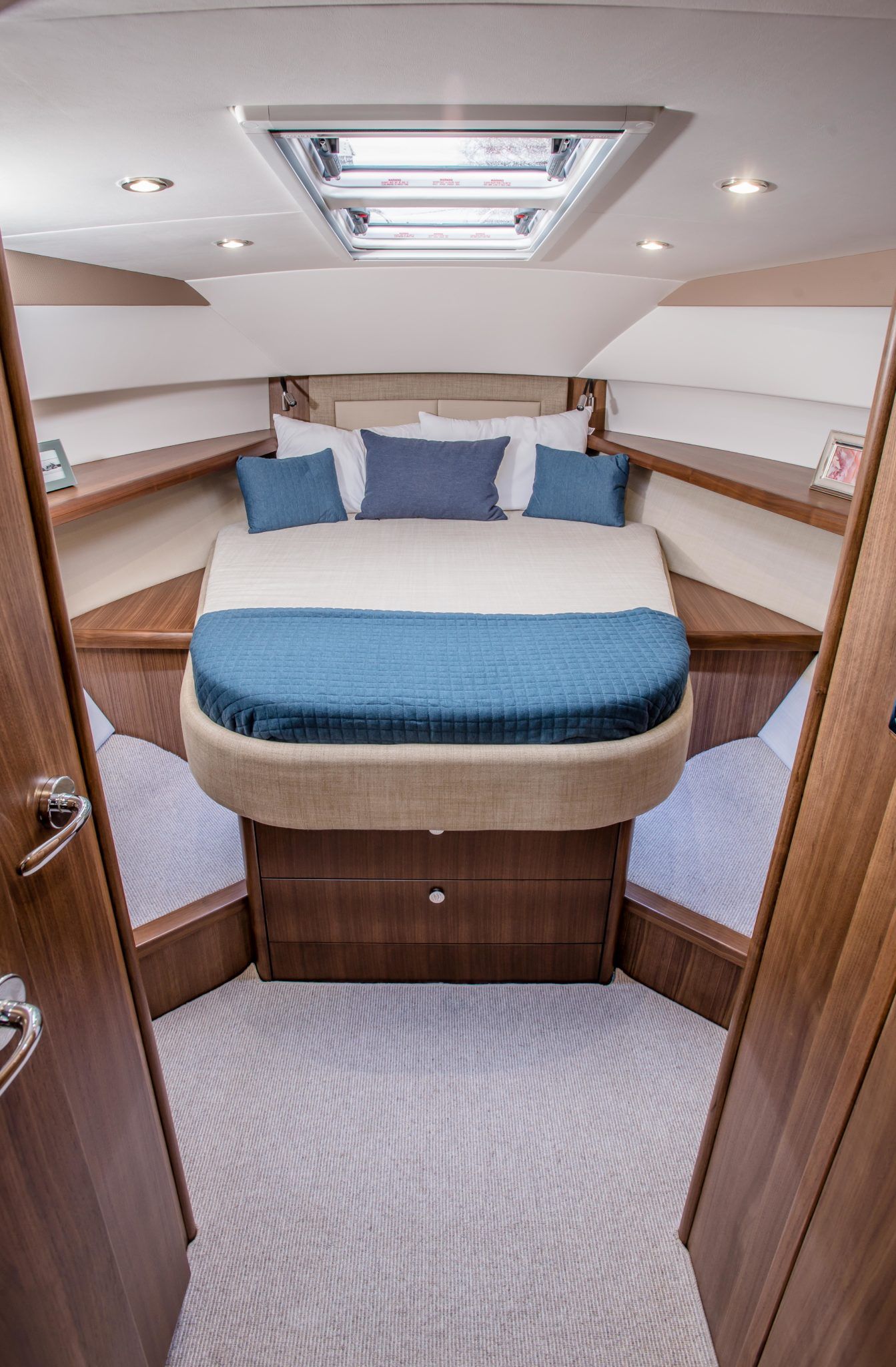

Forward Cabin
Island double berth with large drawers below, shelving and two large wardrobes with hanging rails.

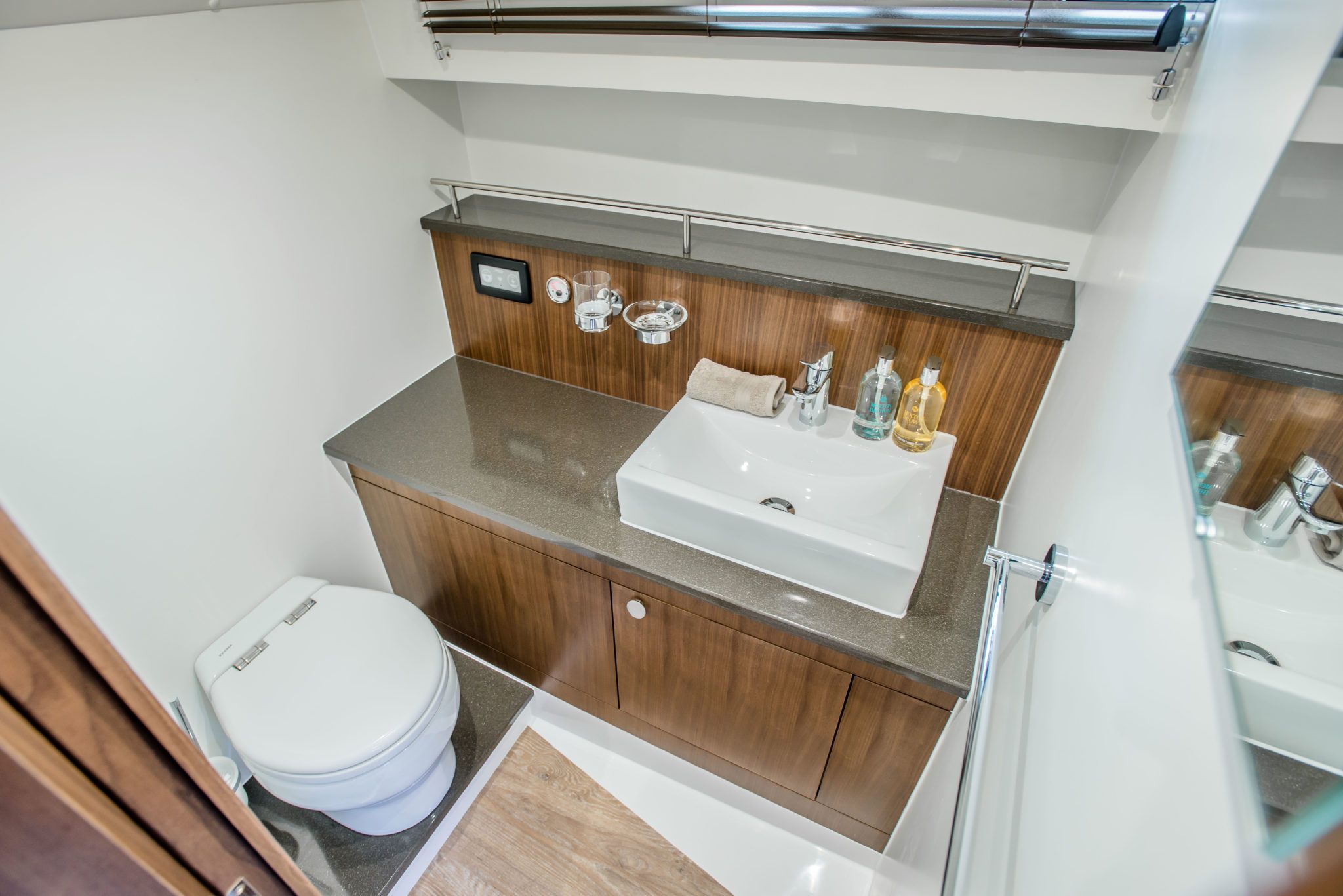

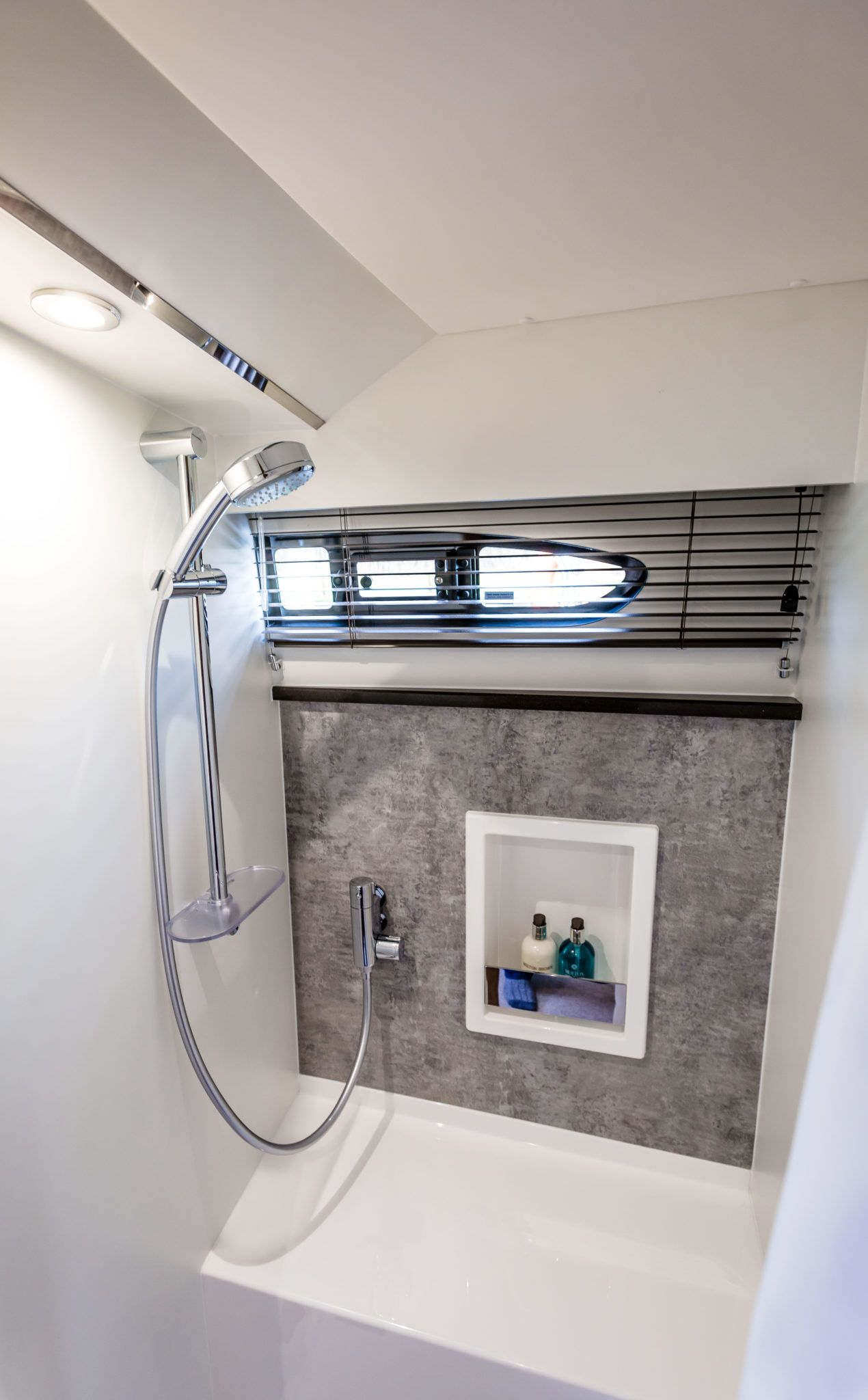

Toilet/Shower
Toilet / shower wet room with Avonite worktop and surface mounted ceramic sink with tall mixer tap. wall mounted shower mixer tap, manual toilet to waste tank.

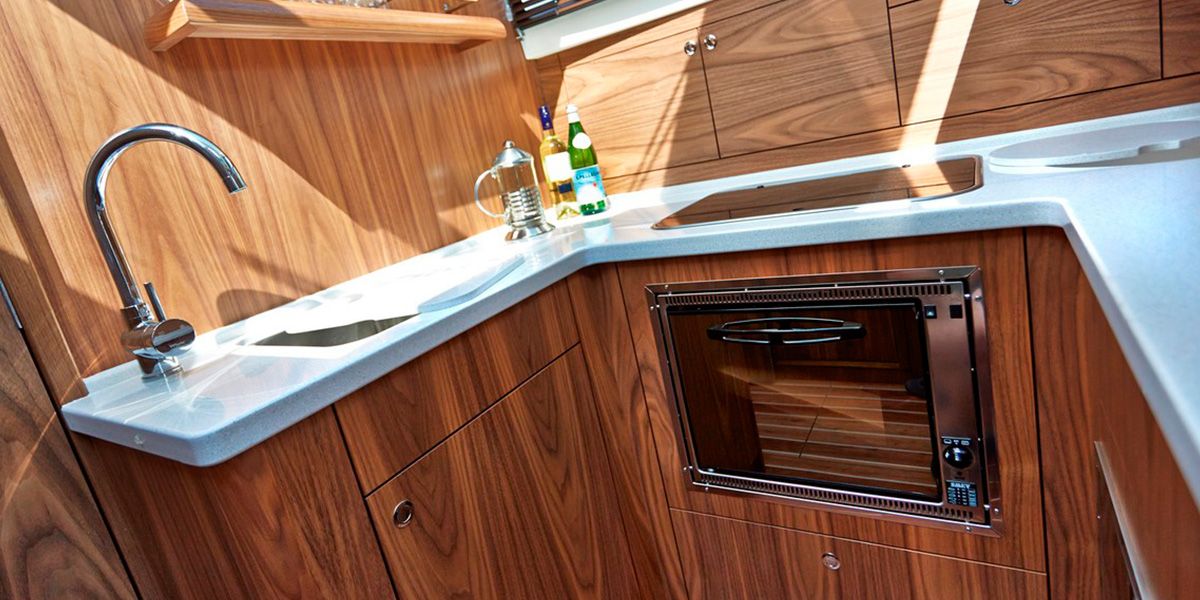

Galley
Spacious galley with Avonite worktop fitted with a 3 burner gas hob, stainless steel waste bin and square stainless steel sink. 30 litre gas oven, 65 litre fridge and substantial storage.

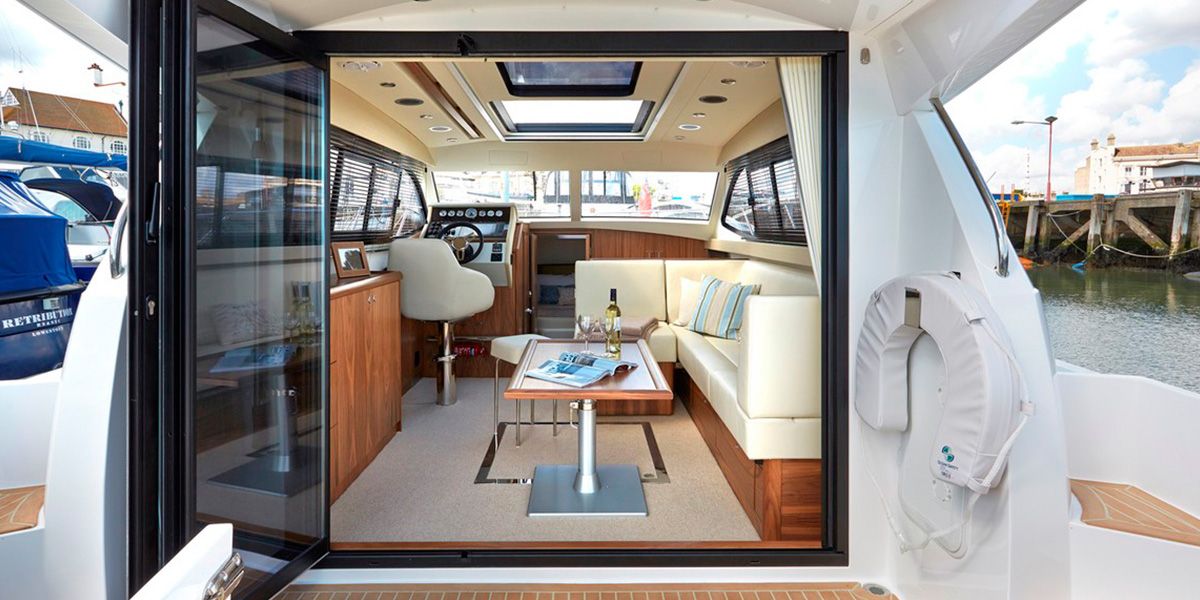

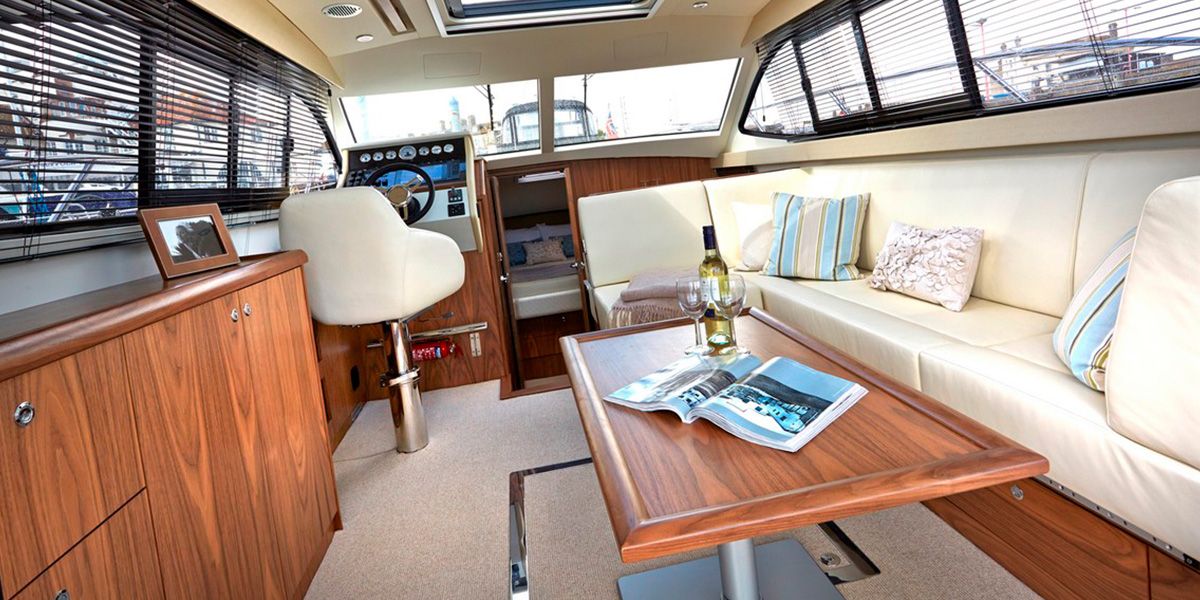

Saloon

Light and airy with portside sideboard unit, starboard settee with storage under (option of sofa bed arrangement), and forward or aft facing settee. Hardwood rectangular table, cocktail cabinet and shelving.

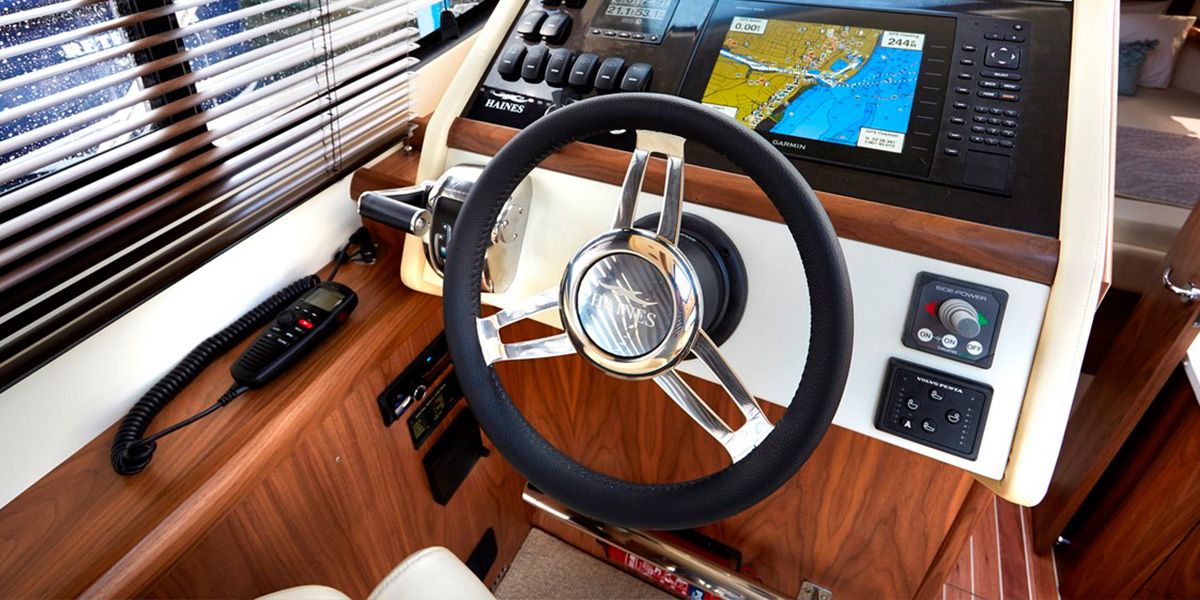

Helm
dash with full instrumentation, leather bound stainless steel steering wheel and Morse control, footrest below helm.

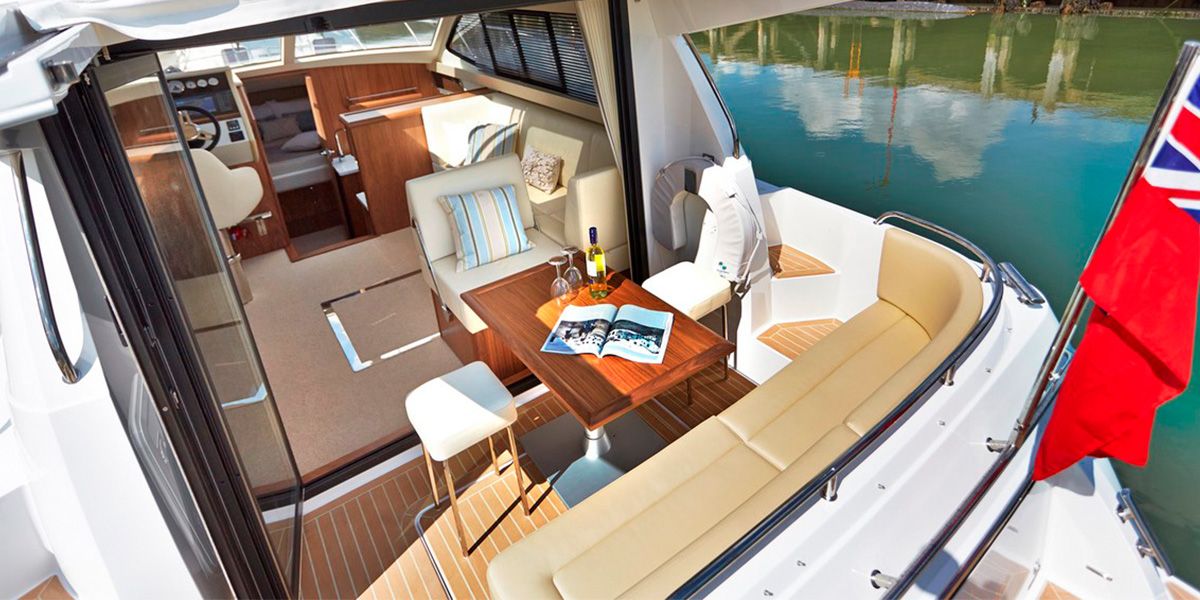

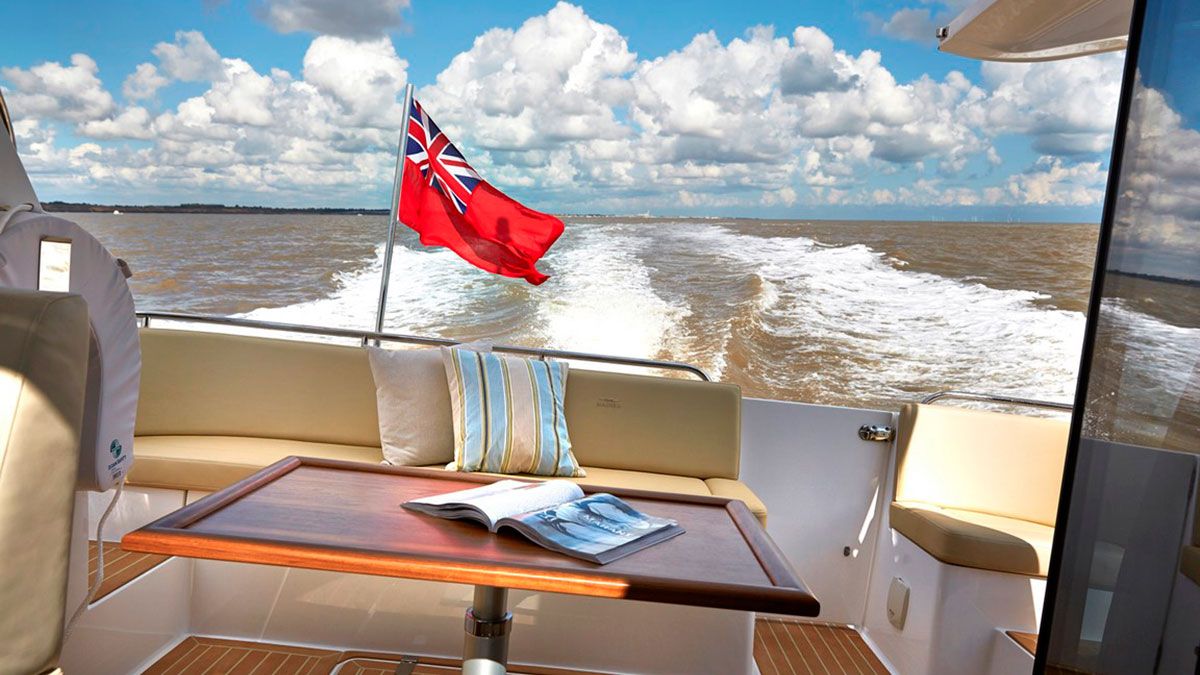

Aft Cockpit
Comfortable seating for 6/8 and substantial storage. Overhanging GRP peak houses central canvas roller canopy. Access to bathing platform, allowing easy boarding from either the side or the aft end.

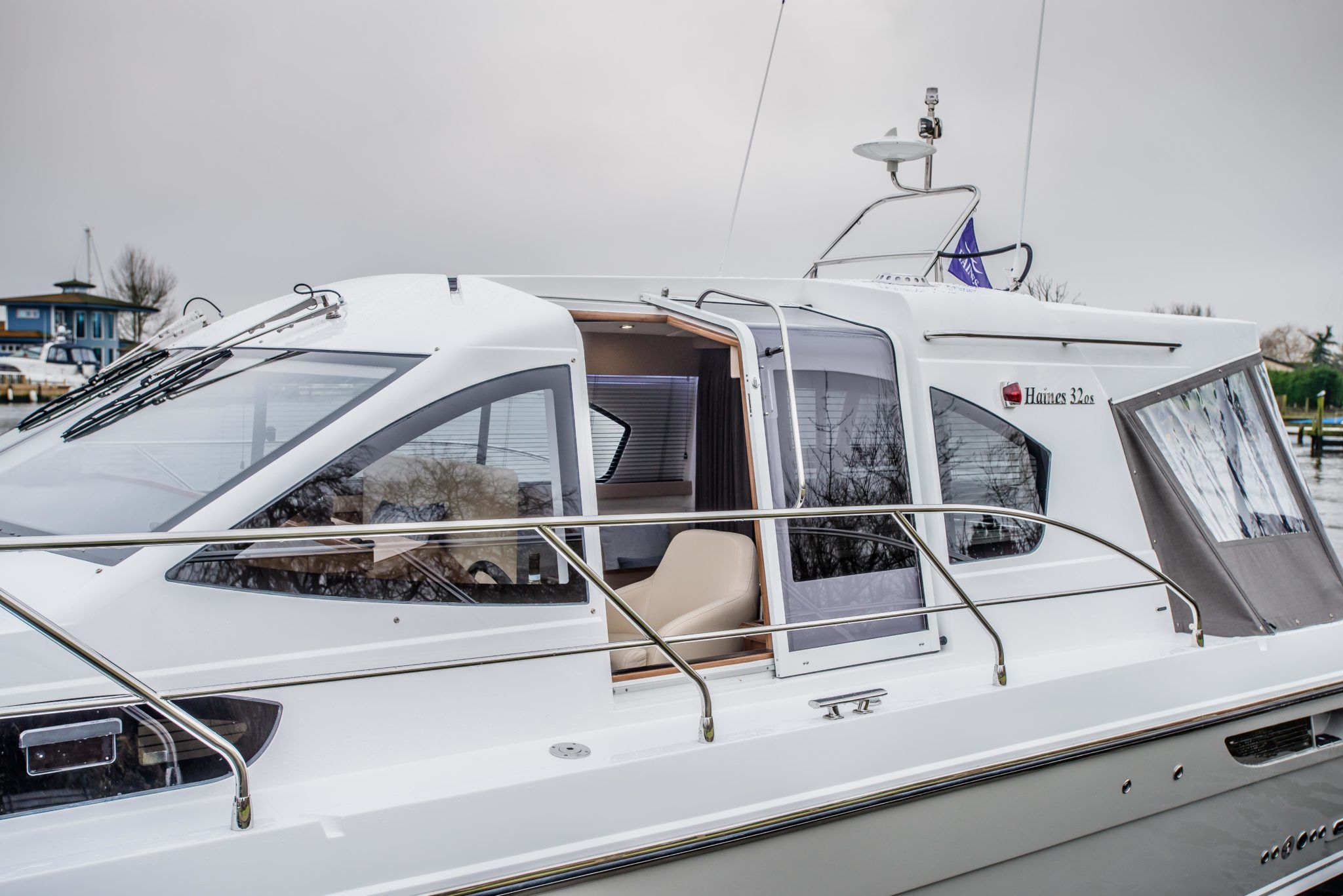

Decks
Steps with handrails to wide side decks. Grab rails along cabin side to forward pulpit. The foredeck accommodates a manual anchor winch and bow roller, with either a galvanized anchor or mud weight.

Capacities

Fuel capacity: 2 x 50 gallons (225 litres)
Water capacity: 55 gallons (247 litres)
Waste Tank: 40 gallons (180 litres)
Calorifier Tank: 40 litres (complete with immersion)
240v Shore Connection
12v Electrical System
240v double sockets (3)
12v Socket to helm position
125amp domestic batteries (x2),
125amp engine battery
Immersion Heater

Radio/CD (IPod Input)
65 litre refrigerator
LED interior down lighters, pelmet lighting and berth reading lights
LED deck lights with remote control
Port, starboard, stern and steaming navigation light
S/S twin trumpet horn
2 x electric wipers
Whale IC water pump
Whale electric bilge pump
Wide range of extras and accessories available.

Hull & Construction

Bonded-In Tinted Windows
Stainless Steel Rubbing Strake
Stainless Steel Deck Cleats (x6)
Stainless Steel Pulpit Grab Rails
Stainless Steel Water, Fuel Holding Tanks

Non-Slip GRP Deck Finish
Fenders (x6) Warps (x4)
Bathing Platform for Rear Side Access
GRP Engine Vents with Stainless Steel Grill Integrated Foot Step

Electrical

240v shore connection 12v electrical system 240v sockets: 3 x double 240v sockets (to saloon, galley and forward cabin) 12v sockets: 1 x cigar socket (to helm position) Batteries: 2 x 130Ah AGM domestic batteries, 1 x 130Ah AGM engine battery Immersion heater Radio (Bluetooth, aux USB input) Stainless steel refrigerator: 65 litre Lighting (interior): LED down lighters, pelmet lighting, step lights, wardrobe lights, cocktail cabinet lighting, under berth lighting and berth reading lights Lighting (exterior): LED deck lights with remote control Navigation lights: Port, starboard, stern and steaming lights Anchor light Horn: S/S twin trumpet horn Wipers: 2 x electric wipers Water pump: Whale water pump (with integrated accumulator tank) Auto bilge pump: Whale electric bilge pump

Safety

Electrical Manual Bilge Pumps
Auto Fire Extinguisher in Engine Compartment (2kg)
Manual Fire Extinguishers 1kg x (2)
Fire Blanket
Wide Non-Slip Decks
Life Buoy Boat Hook

Anchor with Chain, Anchor Bow Roller
Gas System:
Oven / Grill: Smev 30 litre oven and grill
Hob: Smev 3 burner hob with glass top
Gas Bottles: 2 x 6kg Propane gas bottles (including automatic changeover with OPSO)
